Data sheets of pressure-reducing desuperheating station, of stop valves, of regulating valves

1012-225-Э

Destignation Dn, mm Pn, MPa Т, С° ξ Torque, N•m n D, mm d, mm L, mm l, mm A, mm H, mm DM, mm Actuator type*** Weight, kg
1012-225-Э 225 23,5* 250 0,60 1600 28,8 290 226 700 255 1122 Г 950**

body – steel 20ГСЛ (GOST 108.961.03), steel 15ГС (GOST 108.030.113);

yoke – steel 25Л, steel 20ГСЛ (GOST 977);

cover – steel 20К (GOST 5520), steel 20ГСЛ (GOST 108.961.03);

valve spindle – steel 25Х1МФ (GOST 20072) with catalytic nitrogenization;

valve disk – steel 20 (GOST 1050) with building-up welding 04Х19Н9С2 (GOST 2246) or 25Х1МФ (GOST 20072) with catalytic nitrogenization;

valve seat – steel 20 (GOST 1050) with building-up welding 04Х19Н9С2 (GOST 2246).


Gate valves are manufactured in accordance with Technical Specification 3741-003-79315310-2007.

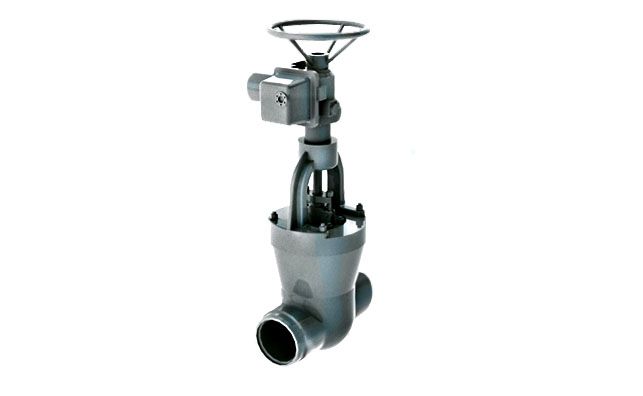

Gate valve on a high pressure 1012-225-э Picture

Gate valves are used for leak-free cutting off water or steam. These valves are used only for cutting off (opening) pipelines. Connection to pipeline – by welding. Gate valves are operated by means of handwheel, parallel shaft reducer or right-angle reducer, electric drive.

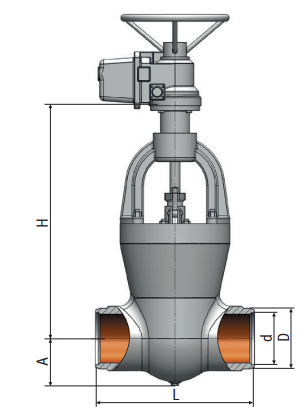

Gate valve on a high pressure 1012-225-э Picture

* working pressure, Рр ** without electric actuator *** ref. electric drives section
