Pulse Valve 586

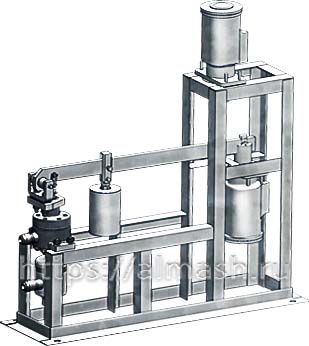

Pulse valve is a part of the safety needle valve and is used for operation of the main safety valve by means of steam supply or shutoff of the servo-driven chamber. Position – vertical, stem up. Connection to pipeline – by welding.
Destignation |
Dn, mm |
Pp, MPa |
working stroke, mm |
L, mm |
H1, mm |
H2, mm |
H, mm |
A, mm |
Weight, kg |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 4,0 | 545 | 6 | 1350 | 225 | 118 | 1345 | 340 | 198 | |
| 20 | 3,9 | 285 | 6 | 1350 | 225 | 118 | 1345 | 340 | 198 | |
| 20 | 9,8 | 540 | 5 | 1175 | 225 | 118 | 1265 | 340 | 191 | |
| 20 | 13,7 | 560 | 5 | 1175 | 225 | 118 | 1265 | 340 | 206 | |
| 20 | 25,0 | 545 | 5 | 1175 | 225 | 118 | 1265 | 340 | 226 |
- Dn - Nominal diameter, mm
- Pn - Nominal pressure, MPa
- Pp - Operating pressure, MPa
- Tmax - Temperature of working medium, max
- ξ - Flow friction characteristic, max. (determined against inlet nozzle diameter)
- Мкр - Torque of reducer driving shaft (if valve spindle is not driven), Nm
- Kvy - Nominal capacity, min., m3/h
