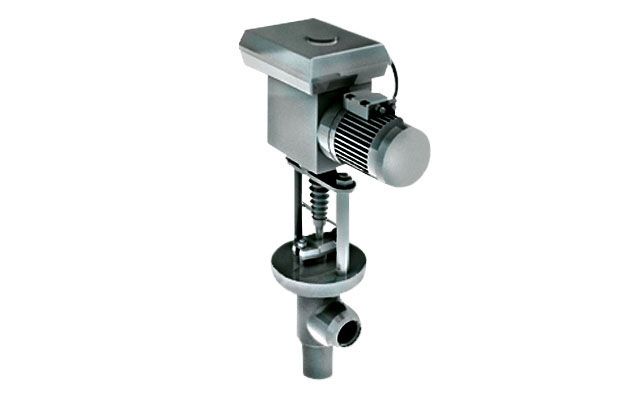

1438-20-Э (01…13)
Destignation | Dn, mm | Pn, MPa | Kvy, |

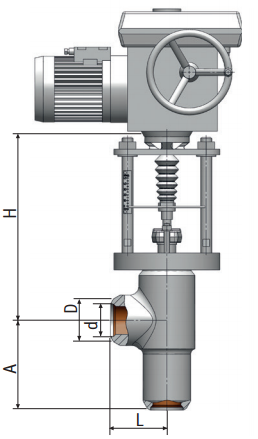

D, mm | d, mm | L, mm | A, mm | H, mm | DM, mm | Actuator type*** | Weight, kg | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
20 | 37,3* | 280 | 0,3…2,9 | 32/45 | 20/28 | 70 | 115 | 637 | А | 40** |
Convention
body – steel 25 (GOST 1050);
yoke – steel 25 (GOST 8479);
valve spindle – steel 14Х17Н2 (GOST 5632), steel 12Х18Н10Т (GOST 5949) with catalytic nitrogenization.
These valves are used for regulating flow of water, steam and non-aggressive petroleum products. Connection to pipeline – by welding. Operation – automatic control by means of electric drive.
* working pressure, Рр ** without electric actuator *** ref. electric drives section
