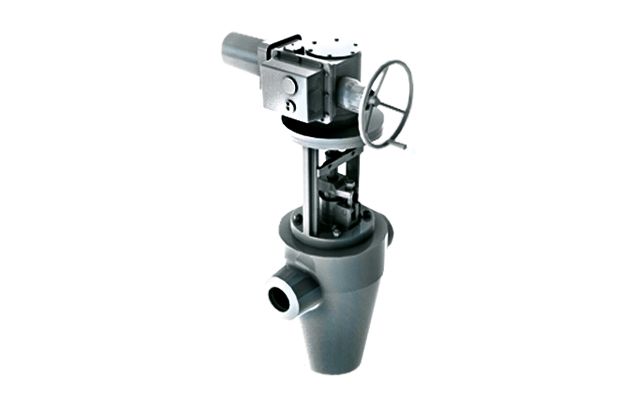

950-200/250-Э

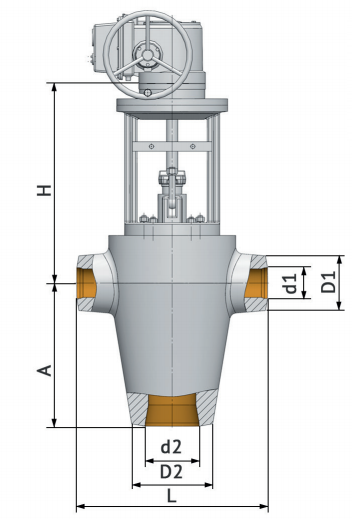

| Destignation | Dn, mm | Pn, MPa | Kv100, |
Torque, N•m | D1, mm | d1, mm | D2, mm | d2, mm | L, mm | A, mm | H, mm | Actuator type*** | Weight, kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 200/250 | 25,0* | 545 | 1000 | 3096 | 345 | 208 | 345 | 251 | 850 | 600 | 1156 | Д | 2361** |
Convention
Body – steel 15Х1М1ФЛ (GOST 108.961.03);
yoke – steel 20ГСЛ (GOST 977);
valve spindle – steel 25Х2М1Ф (GOST 5632) with catalytic nitrogenization;
needle – steel 08Х18Н10Т, steel 12Х18Н10Т (GOST 5632) with building-up welding 04Х19Н9С2;
valve seat – steel 08Х18Н10Т, steel 12Х18Н10Т (GOST 5632) with building-up welding 04Х19Н9С2.
Quick-release valves are manufactured in accordance with Technical Specification 3742-002-79315310-2007.
Quick-release valves are used as regulators of fast-response pressure-reducing and desuperheating stations designed for discharge of direct steam at start-up and shutdown of power-generating units, as well as in case of sharp decrease in turbine load and pipeline overpressure. Connection to pipeline – by welding. Operation – automated control by means of electric drive (Э). May be used as stop valve.
* working pressure, Рр ** without electric actuator *** ref. electric drives section
